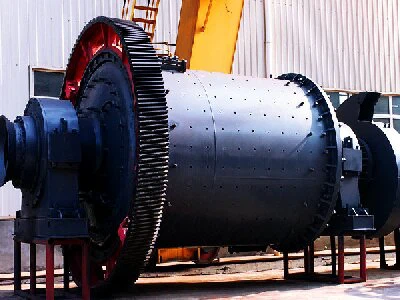

High Quality Cement Ball Mill
Products Description
The high quality cement ball mill is a core equipment in cement production lines, designed for grinding clinker, gypsum, and additives into fine cement powder. Its robust structure and high-efficiency design make it ideal for large-scale industrial applications, ensuring consistent product quality while minimizing energy consumption. Suitable for both dry and wet grinding processes, this machine adapts to diverse production requirements across global construction projects.
01
High Grinding Efficiency
our cement ball mills are made to grind as efficiently as possible
02
Reduced Maintenance Costs
our products require less maintenance
03
Long Service Life
our products have long service life
04
Efficiency of Energy
our products is more energy-efficient.
Production Specification
Cement Ball Mill Structure
A cement ball mill consists of several key components, including a horizontal cylindrical shell, liner plates, feeding and discharging hollow shafts, and grinding media. The mill body is a long, steel-constructed cylinder that houses a set of grinding balls. Inside the cylinder, ball mill liners are fixed to the surface to protect the structure and enhance the grinding efficiency. The grinding media are typically steel balls of varying sizes, arranged in a specific ratio to ensure optimal grinding. In some ball mills, instead of steel balls, steel rods or segments may be used as the grinding media, depending on the specific milling requirements.
Cement Ball Mill Working Principle
Cement clinkers are introduced into the first grinding chamber via the ball mill's feeding system, where they are crushed and broken down to a specific size by the larger grinding balls. The material then passes through an intermediate diaphragm into the second chamber, where smaller grinding balls continue to refine the cement further. Once ground, the materials are discharged through the lower outlet of the discharge device and pass through a discharge grate plate. A cement separator then sorts the materials-coarser particles are returned to the mill for further grinding, while the finely ground particles are released as finished cement.
Advantages of AGICO Product
The AGICO cement ball mills are made to grind as efficiently as possible. More efficient grinding is achieved by the consistent distribution of grinding media made possible by the sophisticated design of the mill body and liners. This increases overall mill throughput by producing a finer product more quickly.
When building its cement ball mills, AGICO uses premium materials. The liners are made to survive the rigorous grinding process, and the steel cylinder is strong and resilient to wear and strain. Because of its longevity, the mill will run effectively for a longer amount of time, requiring less regular maintenance and downtime.
Energy-saving technologies built into AGICO ball mills lower power usage while in use. For cement plants, the grinding process is more economical and energy-efficient when the internal structure and design of the grinding media are optimized to reduce energy loss.
AGICO's cement ball mills require less maintenance than conventional mills because of their sturdy construction and effective design, which lowers operating costs overall and minimizes downtime. AGICO also offers first-rate maintenance services and after-sales support to guarantee seamless operation.
AGICO's cement ball mills are made to last thanks to their sturdy construction and premium materials, which enable them to endure the demanding conditions of cement production. This results in a long service life and a decreased need for frequent replacements or repairs.
Related Spare Parts
BALL MILL SHELL
The shell of the ball mill is the core part of the main load-bearing and power transmission structure of the ball mill. Besides, it is also the container for material grinding and has a significant impact on the working quality of the...
Specification
|
Specification (m) |
Rotation Speed (r/min) |
Grinding Media Load Capacity (t) |
Capacity (t/h) |
Motor Model |
Motor Power (kW) |
Reducer Model |
Weight (t) |
|
Φ2.4×10 |
20.0 |
53 |
19～22 |
YR630-8 |
630 |
ZD80 |
106 |
|
Φ2.4×12 |
20.8 |
63 |
23～25 |
YR800-8/1180 |
800 |
710 |
112 |
|
Φ2.4×13 |
20.8 |
65 |
24～26 |
YR800-8/1180 |
800 |
710 |
120 |
|
Φ2.6×13 |
19.1 |
80 |
26～28 |
YR1000-8/1180 |
1000 |
710 |
158 |
|
Φ3.0×11 |
18.8 |
100 |
35～40 |
YR1250-8/1430 |
1250 |
800 |
185 |
|
Φ3.0×12 |
18.8 |
100 |
35～40 |
YR1250-8/1430 |
1250 |
800 |
195 |
|
Φ3.0×13 |
18.8 |
108 |
38～42 |
YR1400-8/1430 |
1400 |
900 |
210 |
|
Φ3.2×13 |
18.4 |
125 |
50～55 |
YR1600-8/1430 |
1600 |
JDX1000 |
223 |
|
Φ3.2×13* |
18.4 |
125 |
50～55 |
YR1600-8/1430 |
1600 |
JS120-A |
178 |
|
Φ3.5×11.5* |
16.6 |
135 |
110 |
YRKK800-8 |
2000 |
MF200-A |
179.5 |
|
Φ3.5×13* |
16.6 |
140 |
70 |
YRKK800-8 |
2000 |
MF200-A |
193 |
|
Φ3.8×13* |
16.6 |
180 |
70～75 |
YR2500-8/1730 |
2500 |
JS130-C |
222 |
|
Φ4.0×13* |
16 |
191 |
80～85 |
YRKK800-8 |
2800 |
MFY280 |
270 |
|
Φ4.2×13* |
15.6 |
230 |
90 (closed-circuit) |
YRKK900-8 |
3550 |
JB150-B1 |
254 |
|
Φ4.6×13* |
14.9 |
270 |
120 (closed-circuit) |
YRKK1000-8 |
4500 |
JST160 |
292 |
|
Φ4.6×14* |
14.9 |
300 |
130 (closed-circuit) |
YRKK1000-8 |
4800 |
JST160 |
310 |
Company Profile
AGICO Cement International Engineering Co., Ltd. is a key enterprise in China's building materials machinery industry, established in 1997. It owns an industrial park covering 66,000 square meters, including 30,000 square meters of modern workshops.
The company has a registered capital of 81.34 million yuan and sufficient talent reserves, with 230 employees currently, including 42 mid- and senior-level technical professionals.
AGICO CEMENT has over 20 years of experience in import and export trade, with its products selling well in many cities worldwide and receiving widespread acclaim.
