Iron Ore Ball Mill
Products Description

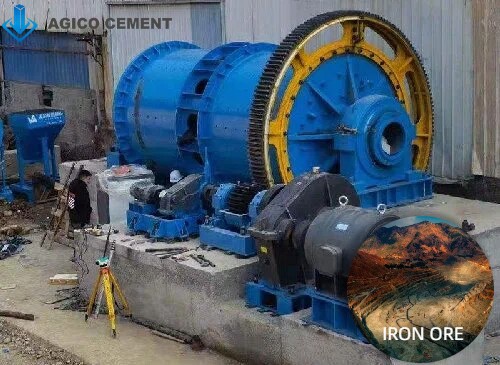

The iron ore ball mill is the primary piece of grinding machinery used by our company. It uses the impact and grinding force of steel balls in a horizontal cylindrical design to professionally handle hard minerals like iron ore and achieve the precise fineness required for mineral processing.
With over two decades of experience in the industry, AGICO is committed to providing customers with reliable and high-performing ball mill solutions that will significantly boost grinding efficiency and reduce total operating expenses. AGICO's strong independent R&D and manufacturing processes serve as the foundation for this commitment.
Products Specification

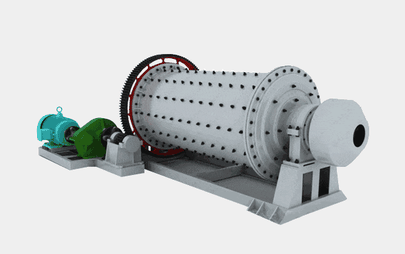

The AGICO iron ore ball mill is primarily composed of feeding, discharging, rotating, and transmission components (such as the reducer, motor, and electrical control). Since we strive for perfection in material selection, we choose quality cast steel that is resistant to wear and deformation to ensure the equipment's long-term endurance.
Hollow shaft: Made from components of high-strength cast steel, the inner lining may be removed and replaced, making maintenance easier.
Liner and cylinder: Manganese steel liners, which are incredibly resistant to wear, line the cylinder. This protects the cylinder and increases grinding efficiency.
Large gear: The large gear is made from high-quality castings and undergoes gear hobbing processing to provide a quiet and smooth transmission.
The AGICO iron ore ball mill's robust structural design and use of high-quality materials provide stability, extended service life, and continuous operation under heavy loads.
| Model (mm) | Capacity (t/h) | Feed Size (mm) | Discharge Size (mm) | Motor Power (kw) | Type |
| φ900×3000 | 1.1-3.5 | ≤20 | 0.075-0.89 | 22 | Dry Type |
| φ1200×4500 | 1.6-5.8 | ≤25 | 0.074-0.4 | 55 | Wet Grate Discharge |
| φ1500×5700 | 3.5-6 | ≤25 | 0.074-0.4 | 130 | Wet Grate Discharge |
| φ1830×6400 | 6.5-15 | ≤25 | 0.074-0.4 | 210 | Wet Overflow |
| φ2200×6500 | 14-26 | ≤25 | 0.074-0.4 | 380 | Wet Overflow |
| φ2200×4500 | 9-45 | ≤25 | 0.074-0.4 | 280 | Wet overflow |
| φ2200×6500 | 14-26 | ≤25 | 0.074-0.4 | 380 | Wet overflow |
| φ2700×4000 | 22-80 | ≤25 | 0.074-0.4 | 380 | Wet overflow |
| φ2700×4500 | 26-90 | ≤25 | 0.074-0.4 | 480 | Wet overflow |
Note: The above list shows some models of the product models. It can be customized according to your project requirements.
Products Advantages
The AGICO iron ore ball mill uses a new type of large-diameter double-row self-aligning roller bearing. Because of the significantly lower frictional resistance compared to traditional sliding bearings, motor power can be reduced by 15% to 20%. At the same time, the equipment speed is optimized, achieving the perfect balance between high efficiency and energy saving.
Because of its high-quality cast steel main body and wear-resistant liners, the AGICO iron ore ball mill operates remarkably smoothly with little vibration and a low failure rate. This reduces the frequency and cost of maintenance while ensuring the production line runs steadily and continuously.
The equipment can be equipped with a dust removal mechanism at the discharge port and has an excellent sealing design. This meets the environmental protection requirements of contemporary industry, significantly improves the working environment, and efficiently suppresses dust overflow during production.
In addition to grinding various iron ores including hematite and magnetite, the AGICO iron ore ball mill may be widely employed in the chemical industry, cement and building materials, non-ferrous metal beneficiation, and other sectors. It enables both dry and wet grinding processes to meet the diverse needs of different clients.
Products Application

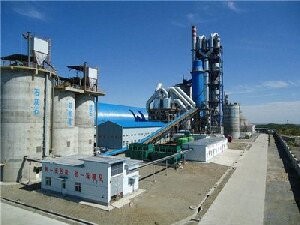

The AGICO iron ore ball mill has a very broad range of applications and is a vital piece of core grinding machinery in many industrial domains. It is widely used in the cement industry to grind cement raw materials, clinker, and slag micro-powder. It can also effectively process a variety of metal ores, including iron, copper, gold, and molybdenum, in the metallurgical mining field, providing ideal particle size raw materials for subsequent beneficiation processes.

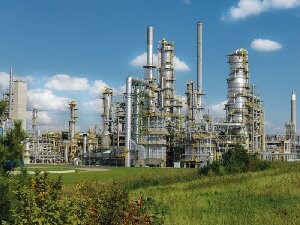

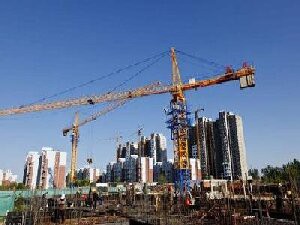

Furthermore, in the domains of chemical engineering and construction, this apparatus is a perfect option for pulverizing a variety of non-metallic mineral raw materials and creating superior building material powders, exhibiting exceptional process flexibility and dependability.
Why Choose Us
Our Partners
Honor and qualification
Official certification, professional after sales service.
Our Clients
FAQ
Q: What kind of company is AGICO?
A: AGICO is a well-known and competent company in the mining and cement equipment production industries. It has been dedicated to offering general contracting services for EPC projects since 2000, including everything from engineering design and equipment manufacturing to installation and commissioning for clients worldwide. We guarantee the provision of dependable and effective solutions to our clients thanks to our extensive technological accumulation and extensive project experience.
Q: What are the core advantages of the AGICO iron ore ball mill?
A: "High efficiency and energy saving" and "stability and durability" are our main advantages. With a 15%–20% reduced energy usage than conventional equipment, the equipment uses an innovative bearing system and structural optimization. A long service life and a low failure rate under demanding working conditions are ensured by the use of premium wear-resistant materials in critical components, which maximizes value for consumers.
Q: Can this equipment handle other materials besides iron ore?
A: Perfectly fine. With a Mohs hardness of 9.3 or less and a moisture content of 6% or less, the AGICO iron ore ball mill is a very adaptable piece of grinding equipment that can be used for a variety of non-flammable and non-explosive minerals, including copper ore, gold ore, slag, cement clinker, etc. It is extensively utilized in many different industries, such as chemical engineering, construction materials, and mineral processing.
Q: What after-sales services does AGICO offer?
A: We provide thorough pre-, during-, and post-purchase assistance. Free technical advice, scheme design, commissioning and installation assistance for equipment, operator training, etc. are all included. In order to guarantee the seamless operation of your production, we will offer ongoing technical assistance and spare parts supply after the equipment is delivered. We also pledge to act promptly in the event of any issues.
