High Energy Ball Milling
Products Description
AGICO's High Energy Ball Milling equipment is a key solution in cement plants, primarily used for grinding materials in the cement clinker section. It is ideal for processing cement clinker, limestone, gypsum, slag, ores, and other materials with varying hardness. This versatile equipment is also widely applied in industries like silicate production, building materials, refractories, and mineral processing.
With years of R&D expertise, AGICO offers high-quality ball mills that ensure simple operation, high automation, and reliable performance. Our competitive pricing and commitment to product efficiency make our High Energy Ball Milling equipment a top choice for cement production and other industrial applications.
Specification
|
Specifications And Models |
Ф900×1800 |
Ф900×3000 |
Ф1200×2400 |
Ф1200×3000 |
Ф1200×4500 |
|
Barrel Speed(r/min) |
36-38 |
36 |
36 |
36 |
32.4 |
|
The Load Ball(t) |
1.5 |
2.7 |
3 |
3.5 |
5 |
|
Feed Particle Size(mm) |
≤20 |
≤20 |
≤25 |
≤25 |
≤25 |
|
Discharging Granularity(mm) |
0.075-0.89 |
0.075-0.89 |
0.075-0.6 |
0.074-0.4 |
0.074-0.4 |
|
Output(t/h) |
0.65-2 |
1.1-3.5 |
1.5-4.8 |
1.6-5 |
1.6-5.8 |
|
Motor Power(kW) |
18.5 |
22 |
30 |
37 |
55 |
|
Total Weight(t) |
5.85 |
6.98 |
13.6 |
14.3 |
15.6 |

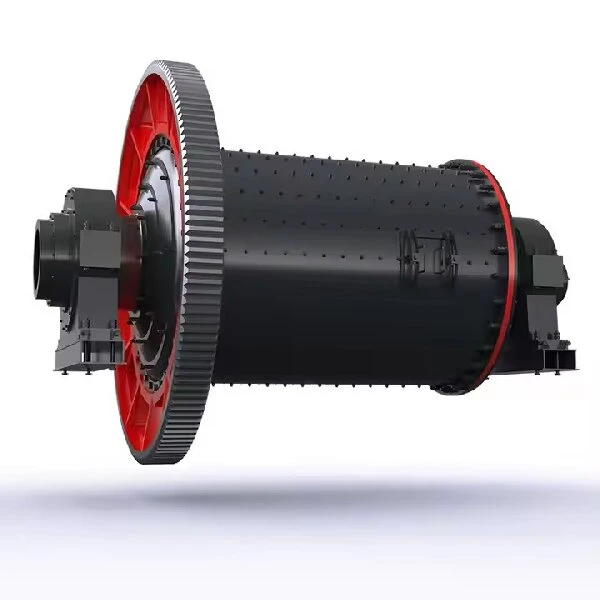

AGICO's High Energy Ball Milling equipment consists of the following key components
Feeding System: Includes a hopper and feeding mechanism to ensure controlled material input.
Grinding Chamber: A cylindrical body lined with wear-resistant materials to enhance grinding efficiency and protect the mill.
Discharging System: An outlet for smooth and uniform material discharge after grinding.
Transmission System: Consists of a reduction gear, motor, small gears, and an electric control panel to transfer power to the mill.
Bearings: High-quality bearings support the cylinder, maintaining stable rotation and minimizing friction.
Drive Mechanism: Includes a motor, pulley, and V-belt to power the rotation and grinding process.
This structure ensures high performance, reliability, and easy maintenance in industrial grinding applications.
Advantages
Technology First
AGICO's high energy ball milling equipment is built for long-term use, stable performance, and minimal maintenance, making it a strong choice for industrial grinding applications.
High Efficiency with Low Energy Use
AGICO's high energy ball mill is designed to deliver high output while keeping energy consumption low. By improving the traditional grinding process, it offers better efficiency and lower power costs, making it both economical and environmentally friendly.
Easy and Clean Lubrication System
The ball mill uses grease for main bearing lubrication, ensuring a clean and simple maintenance process. This setup helps avoid contamination and reduces the need for frequent servicing, saving both time and operational costs.
Extended Service Life with Reliable Bearings
Equipped with antifriction bearings, the mill handles higher loads and operates more smoothly. This design minimizes the risk of overheating and unplanned downtime, increasing the equipment's service life by up to 5%.
Durable and Wear-Resistant Construction
The hollow shaft features a replaceable steel-cast lining and a wear-resistant plate, improving the machine's resistance to abrasion. This enhances durability and performance under continuous operation, even with hard materials.
FAQ
