Mini Concrete Mixer Truck
Products Preview

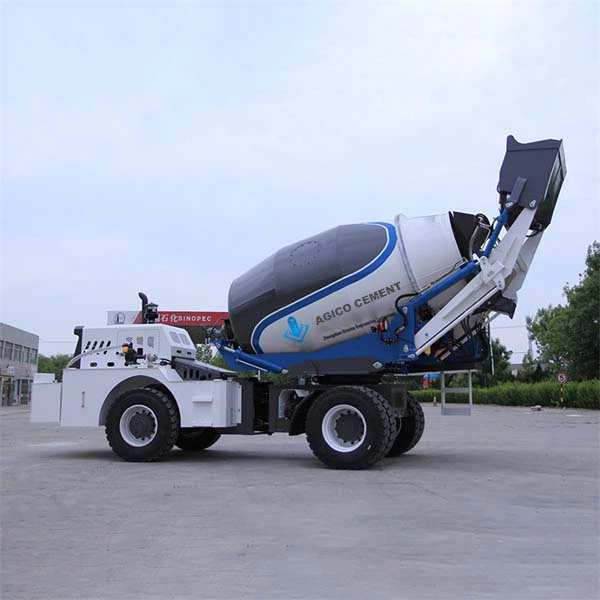

Mini concrete mixer truck for sale
AGICO Mini Concrete Mixer Truck is specially designed for small construction sites, tunnel projects, mining operations, and urban job sites. It offers a capacity range of 2m³ to 4m³ and can be flexibly customized with a five-wheel or six-wheel chassis based on customer site conditions. This truck combines efficient mixing, stable transport, and smart control to ensure that concrete does not segregate or settle during transit, meeting high-quality construction requirements.
Advantages of AGICO Concrete Mixer Truck
01
High-strength mixing
The entire mixing drum is made of high-quality alloy steel, with built-in wear-resistant spiral blades. This ensures more uniform mixing and faster discharge.
02
Flexible use
The drum of AGICO mini concrete mixer truck can be independently equipped with an electric motor or diesel engine. It can also be used separately from the chassis.
03
Multiple capacities
AGICO supports customization of small drums from 2m³, 3m³, to 4m³, suitable for projects of different scales, especially for space-limited tunnels or mines.
04
Deep customization
Based on customer site conditions, we can customize five-wheel tankers (suitable for narrow roads) and six-wheel tankers (suitable for tunnel construction).
Products Description

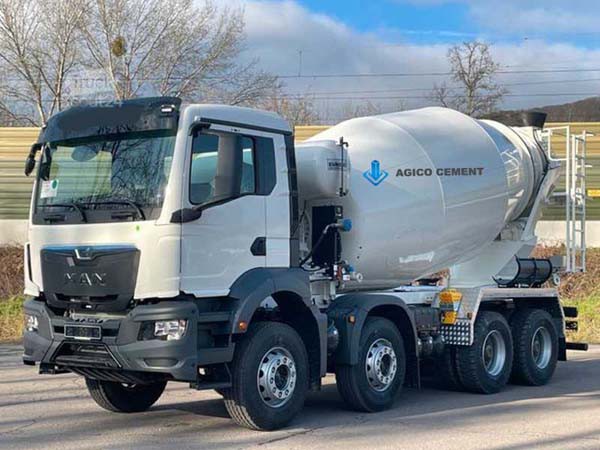

How does a concrete mixer truck work
Once the mini concrete mixer truck is started, the truck's power is transmitted through a hydraulic system to rotate the mixing drum. The operator uses a control lever to change the drum's rotation direction: forward rotation loads and mixes the concrete during transit, and reverse rotation discharges the concrete. On the way to the job site, the drum rotates continuously at low speed to prevent the concrete from settling or hardening. After unloading, the drum is rinsed with water to prevent leftover concrete from hardening and taking up space inside the drum.

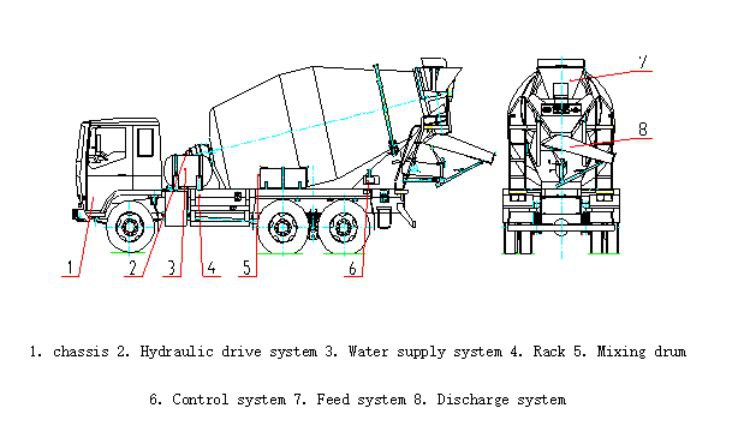

The AGICO mini concrete mixer truck mainly consists of 8 components
Chassis system
Mixing drum
Transmission system
Hydraulic system
Loading and unloading device
Water supply system
Control system
Support frame
Technical Specification
| Parameter | Value |
|---|---|
| Mixing transport capacity | 2 – 4 m³ |
| Loading coefficient | 0.67 |
| Drum geometric volume | 3.0 – 6.0 m³ |
| Diesel engine power | 15 – 40.5 kW (electric motor optional) |
| Drum rotation speed | 0 – 14 r/min |
| Axial tilt angle | 16°±15' |
| Loading height | 3.1 – 3.2 m |
| Curb weight | 4,000 – 6,000 kg |
| Overall dimensions (L×W×H) | 4.6×2.05×2.1 – 5.8×2.6×2.65 m |
| Hydraulic system | Variable displacement piston pump + fixed displacement motor |
| Drive method | Chassis-mounted full-power PTO / independent diesel engine |
| Discharge residual rate | < 1% |
| Applicable slump | 70 – 260 mm |
FAQ
Q: Can the mini concrete mixer truck be used on job sites without a power supply?
A: Yes. The AGICO Mini series comes standard with a diesel engine drive and does not rely on an external power supply. An electric motor drive is also available as an option for fixed batching plants with a power supply.
Q: What is the difference between the five-wheel and six-wheel tankers?
A: Five-wheel tanker: Has a smaller turning radius, suitable for narrow city roads or rural job sites.
Six-wheel tanker: Offers more stable load capacity, suitable for tunnels, mines, or construction environments with poor road conditions.
Customization is available based on the customer's site road conditions.
Q: Can the mixing drum be used without being mounted on the truck?
A: Yes. The drum can be equipped with an independent electric motor or diesel engine and placed on the ground for use as a stationary mixing unit.
Q: How is the quality of concrete ensured during transportation?
A: The mixing drum rotates continuously during transport (5–14 r/min). Together with the internal twin-spiral blade structure, this effectively prevents concrete segregation, settling, or setting. The discharge residual rate is less than 1%.
