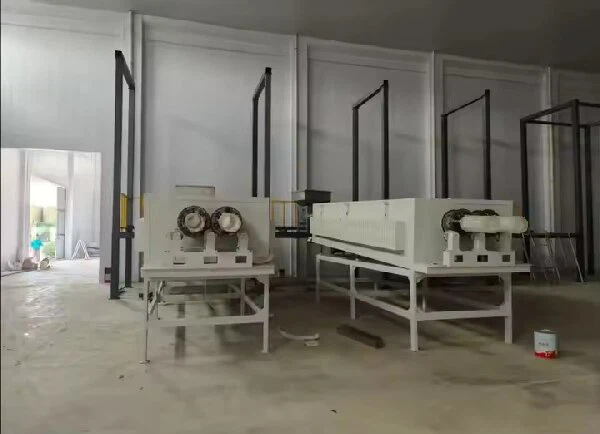

Rotary Kiln Electric Furnace

Product Overview

AGICO Cement's Rotary Kiln Electric Furnace is an innovative solution designed for efficient and precise heating in the non-ferrous metallurgy and chemical industries. Utilizing resistance materials as electric heating elements, this electric rotary kiln provides indirect heating, offering superior temperature control and energy efficiency. It's ideal for roasting metal oxides and chemical products, ensuring high-quality results with minimal energy waste. The furnace's advanced design enhances the automation and stability of the sintering process, making it a key piece of equipment in the production of various materials, including those for lithium-ion batteries.

With AGICO Cement's Rotary Kiln Electric Furnace, businesses can achieve higher production efficiency and reduced operational costs.

Product Specification

structure Of Rotary Kiln Electric Furnace

A Rotary Kiln Electric Furnace consists of several key components, including the feeding system, kiln body, discharging system, electric heating element, and control unit.

The electric heating system gradually raises the temperature by heating the surrounding environment of the materials. Once the thermocouple detects the desired temperature, the heat level stabilizes, and the material remains at the ideal temperature until the required reaction time is completed.

This process ensures both safety and efficiency, providing a controlled and reliable environment for material treatment.

Advantages of Rotary Kiln Electric Furnace

High Thermal Efficiency

The electric rotary kiln offers high thermal efficiency with no smoke, ash, or slag carrying away excess heat, ensuring a cleaner and more efficient process.

Precise Temperature Control

The temperature control system is accurate and reliable, making it ideal for processes that require a narrow pre-firing temperature range.

Simplified Fuel Management

There is no need to build fuel storage or transportation stations, which simplifies fuel procurement, transportation, and safety management.

Prevents Corrosion and Pollution

The production process avoids SO2 gas corrosion of the kiln body and environmental pollution issues.

Cost-Effective

Compared to gas or oil-fired rotary kilns, the electric rotary kiln is more economical and environmentally friendly, reducing operating costs and environmental impact.

Specification

Model	Temperature	Size	Power	Angle	Capacity	Power	Dimensions	Weight
HZ10	1000℃	φ0.1×4.5m	36kW	0.5~5.0°	~4kg/h	380VAC 50HZ	~6.1×1.6×1.4m	~4T
HZ15		φ0.15×4.5m	42kW		~8kg/h		~6.1×1.6×1.4m	~4T
HZ20		φ0.2×4.5m	48kW		~15kg/h		~6.1×1.6×1.4m	~4T
HZ35		φ0.35×9m	68kW	0.5~4.0°	~120kg/h		~11×1.8×1.9m	~8T
HZ40		φ0.4×9m	108kW		~150kg/h		~11×1.8×1.9m	~10T
HZ50		φ0.5×9m	180kW		~250kg/h		~11×1.9×2.0m	~12T
HZ62		φ0.62×10.5m	260kW	0.5~3.0°	~300kg/h		~12.5×2.2×2.1m	~15T
HZ70		φ0.7×10.5m	280kW		~360kg/h		~12.5×2.3×2.2m	~18T
HZ80		φ0.8×10.5m	350kW		~480kg/h		~12.5×2.3×2.2m	~20T
HZ94		φ0.94×12m	400kW	0.5~2.5°	~650kg/h		~14×2.4×2.3m	~25T
HZ100		φ1.0×12m	410kW		~750kg/h		~14×2.5×2.5m	~28T
HZ110		φ1.1×12m	460kW		~900kg/h		~14×2.5×2.5m	~30T
HZ125		φ1.25×12m	500kW		~1000kg/h		~14×2.6×2.6m	~35T
HZ142		φ1.42×13.5m	600kW		~1350kg/h		~15.5×2.7×2.7m	~40T
HZ150		φ1.5×13.5m	750kW		~1500kg/h		~15.5×2.8×2.9m	~45T
HZ160		φ1.6×15m	900kW		~1600kg/h		~17.5×2.9×3.0m	~50T
HZ180		φ1.8×15m	1000kW		~1900kg/h		~17.5×3.1×3.2m	~55T
HZ200		φ2.0×15m	1100kW		~2200kg/h		~17.5×3.3×3.4m	~60T
HZ220		φ2.2×15m	1300kW		~2600kg/h		~18×3.5×3.6m	~70T

About Us

AGICO CEMENT

A part of AGICO GROUP, is a leading manufacturer of rotary kilns and grinding equipment based in China, serving the global market. As an integrated solution provider in the cement and related industries, AGICO CEMENT combines advanced technology with a strong focus on innovation. In recent years, the company has successfully completed more than 80 EPC projects and over 600 design projects, specializing in cement grinding, slag grinding, and rotary kiln applications.

certifications in one picture

FAQ

Q: Where are AGICO CEMENT's rotary kilns exported to?

A: Our rotary kilns are exported to over 100 countries and regions worldwide, including the United States, Canada, Russia, Kazakhstan, Turkey, Iran, South Africa, Ethiopia, Egypt, Malaysia, India, Chile, and many others.

Q: What kind of production equipment does AGICO CEMENT use?

A: We operate over 200 sets of advanced casting production equipment, ensuring high-quality manufacturing of rotary kilns, grinding plants, and other related equipment.

Q: Does AGICO CEMENT provide custom solutions for clients?

A: Yes, AGICO CEMENT specializes in both standard and non-standard product designs. We offer tailored solutions to meet the unique requirements of each client, whether it's for cement production, grinding plants, or rotary kilns.

Q: How does AGICO CEMENT ensure high-quality products?

A: AGICO CEMENT ensures product quality by combining advanced manufacturing technology, over 160 experienced technical experts, and a strict quality control process. We also use state-of-the-art casting production equipment to maintain consistent standards across all our products.
