A Kiln Chosen Around the Whole Line

A small kiln is not simply a shortened large kiln. AGICO starts with clinker demand, raw-meal burnability, fuel, gas volume, cooler duty, and plant space, then defines the kiln diameter, length, speed range, drive arrangement, and line interfaces.

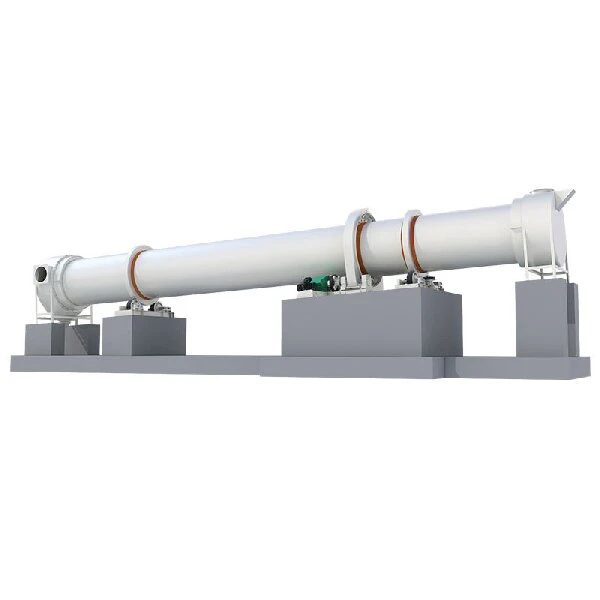

Compact small cement kiln assembly on support bases

Product Advantages

Compact Project Footprint

AGICO's small cement kiln supports layouts where production area and civil-work scope must remain controlled.

Adjustable Material Residence

The variable-speed drive helps operators match material travel to feed condition and burning response.

Coordinated Mechanical Support

AGICO's shell, tyres, rollers, thrust control, and drive are selected as one working assembly.

Defined Line Interfaces

The kiln is planned with the feed inlet, burner, gas route, cooler connection, and dust-collection boundary.

Working Process

Installed small rotary kiln with burner and exhaust equipment

From Prepared Raw Meal to Cooled Clinker

Raw meal enters the higher kiln end and advances as the inclined shell rotates. Hot gas moves counter-currently while heating, calcination, and clinker-forming reactions develop before discharge to the cooler.

Prepared raw meal enters at the kiln inlet.

Rotation and slope move the material through the kiln.

Progressive heating supports calcination and clinker formation.

Hot clinker transfers to the matched cooler.

Kiln Configuration

Small cement kiln shell with riding rings and support points

Mechanical Support and Drive

The shell, tyres, support rollers, thrust arrangement, and drive are selected together for alignment, load transfer, speed control, and routine inspection.

Firing and Line Interfaces

The refractory, seals, burner connection, feeding device, cooler, induced-draft equipment, dust collector, and controls are matched to the project scope.

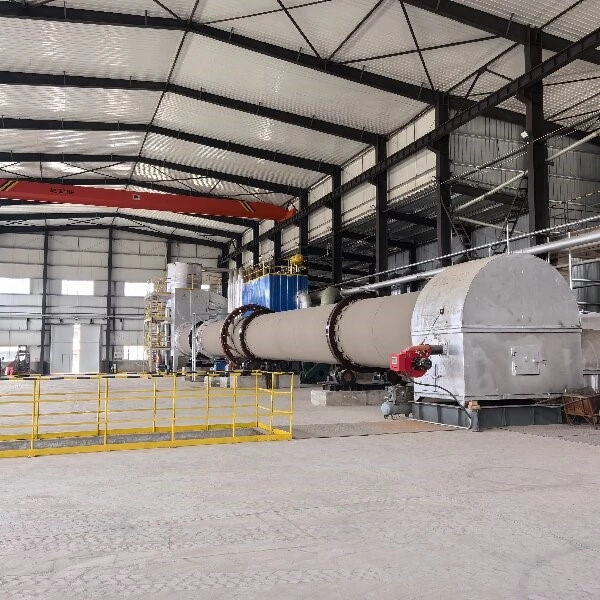

Compact cement kiln installed inside a production workshop

Project Applications

Inputs That Define the Final Kiln

Target clinker output and operating hours

Raw-meal chemistry, fineness, moisture, and burnability

Fuel type, calorific value, and preparation route

Power supply, elevation, and ambient conditions

Cooler, draft, dust-collection, and conveying interfaces

Site layout and maintenance clearances

Request a Kiln Proposal

Hot Tags: small cement kiln, China small cement kiln manufacturers, factory, calcination kiln, high temperature roller hearth kiln, portland cement kiln, rotary kiln furnace, rotary kiln in cement industry, vertical shaft kiln process

Technical Parameters

Reference Model	Kiln Size	Stated Output	Drive Motor	Approx. Weight
AG16	Φ1.6 × 20 m	0.3 t/h	AGYCT250-4A	40 t
AG18A	Φ1.8 × 28 m	0.45 t/h	AGYCT225-4B	52 t
AG25	Φ2.5 × 40 m	3–6 t/h	AGYCT250-4A	145 t
AG26	Φ2.6 × 40 m	10 t/h	AGYCT250-4A	165 t
AG28	Φ2.8 × 44 m	15 t/h	AGYCT250-4A	195 t

Preliminary Reference

The above data is provided for preliminary reference only. Actual plant capacity, mixer configuration, storage volume, power demand, discharge height, control functions, and overall dimensions must be confirmed according to your concrete recipes, site conditions, utilities, operating schedule, and specific project requirements.

FAQ

How does AGICO select a small cement kiln size?

AGICO reviews required clinker output, raw-meal burnability, fuel, operating hours, site conditions, cooler duty, and gas-handling requirements before recommending a kiln size.

What information is needed for a technical proposal?

Please send AGICO the target output, raw-material analysis, feed moisture and fineness, fuel data, power supply, site drawing, environmental requirements, and operating schedule.

Can the kiln be supplied as part of a complete clinker line?

AGICO can evaluate the kiln with feeding, fuel preparation, cooling, dust collection, conveying, and control interfaces. The exact supply boundary is defined in the technical proposal.

What should be planned for kiln maintenance?

AGICO recommends clear access to the drive, support rollers, seals, burner, inspection points, and refractory-work areas, with lubrication and alignment checks in the maintenance plan.
