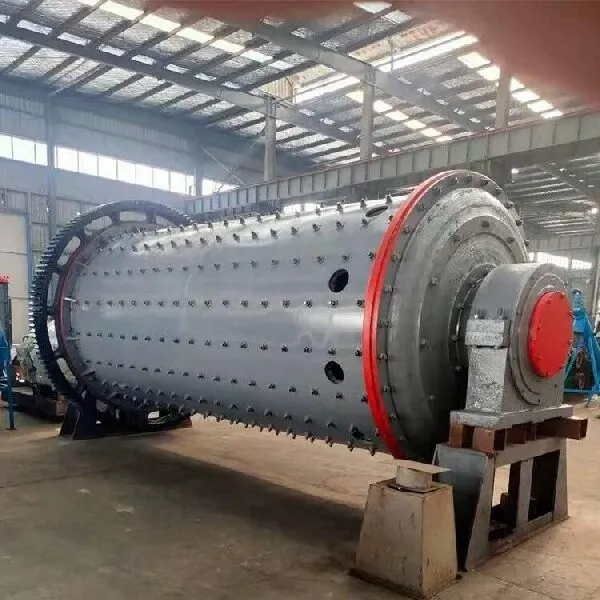

Energy Saving Ball Mill

Products Description

The AGICO energy saving ball mill is a key piece of grinding equipment supplied by our company. Based on the traditional ball mill, it has successfully achieved a balance between lowering energy consumption and boosting efficiency through rigorous innovation in construction, transmission, and wear-resistant materials. In the mining, construction, metallurgy, and other industries, it is now the finest choice for achieving "more crushing and less grinding" as well as cost savings and higher productivity.

high quality

Advanced Equipment

Professional Team

One-Stop Solution

Technical Specification

ball mill structure 1200x500

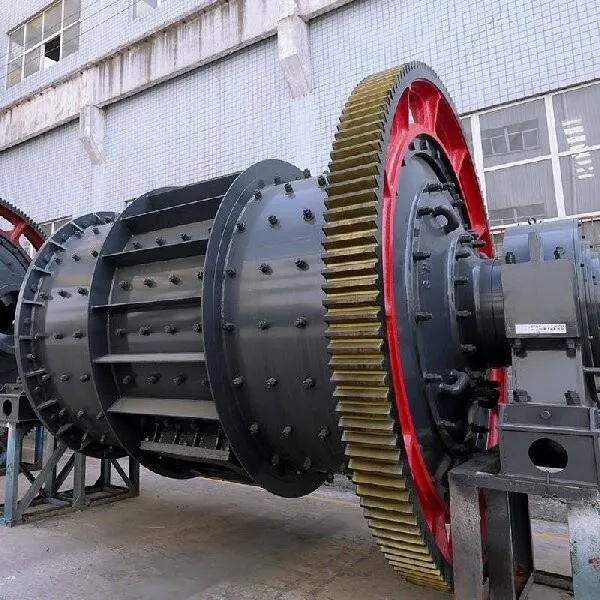

cement-ball-mill-working-principle AGICO's energy saving ball mill adopts a horizontal cylindrical rotating structure and is driven by gears along the outer edge. It is usually designed with two compartments.

The feeding device is used to evenly feed the materials into the first bin while it is operating. In order to finish the coarse crushing, the grinding media (steel balls) inside the cylinder are raised to a specific height by centrifugal force and friction, then thrown down to impact and grind the materials. The material is then finely ground in the second chamber by use of flat liners and smaller steel balls after passing through the partition plate.

The grinding process is finished when the powder that finally satisfies the fineness requirements is released through the discharge grate.

Specification Model (Diameter × Length)	Capacity (t/h)	Motor power (kw)
φ900×1800	0.65 - 2	18.5
φ900×3000	1.1 - 3.5	22
φ1200×2400	1.5 - 4.8	30
φ1500×5700	3.5 - 6	130
φ1830×3000	4 - 10	130
φ1830×6400	6.5 - 15	210
φ2100×3000	6.5 - 36	155
φ2200×4500	9 - 45	280
φ2200×6500	14 - 26	380
φ2400×3000	7 - 50	245
φ2700×4000	22 - 80	380
φ2700×4500	26 - 90	480
φ3600×8500	45.8 - 256	1800
φ4000×6000	65 - 248	1600
φ4500×6400	84 - 306	2000
φ5030×8300	118 - 500	3300
φ5500×8500	148 - 615	4500

Contact now

Products Selling Points

Significant energy-saving effect

In comparison to standard ball mills, the overall energy consumption of AGICO energy saving ball mills can be lowered by 20% to 30% by optimizing the cylinder construction and transmission system and implementing high-efficiency motors.

Processing capacity and efficiency improvement

The improved liner has increased the energy saving ball mill's processing capacity by more than 20% and increased production efficiency by boosting the material lifting capacity and the grinding impact.

Uniform output particle size

The fineness and concentration of the energy saving ball mill's output particle size are stabilized by the compartment design and optimum discharge control mechanism, which helps to improve the indicators of the ensuing separation process.

Wide applicability

Our energy saving ball mill may be used to treat a variety of ores and other grindable materials and is appropriate for a number of sectors, including cement, new construction materials, fertilizers, refractory materials, the beneficiation of black and non-ferrous metals, glass, and ceramics.
