Name: China VRM Cement Mill Manufacturers Factory - Good Price VRM Cement Mill for Sale
Brand: AGICO
SKU: 316703379

Description

Technical Parameters

Product Description

Finish Grinding with an Integrated VRM

AGICO VRM cement mill is designed for finish grinding of cement clinker and selected additives. It combines material-bed grinding, hot-gas drying, internal classification, and fine-product discharge in one system. The AGIT series covers standard capacities from 55 to 250 t/h, with selection based on cement composition, grindability, moisture, target fineness, and plant conditions.

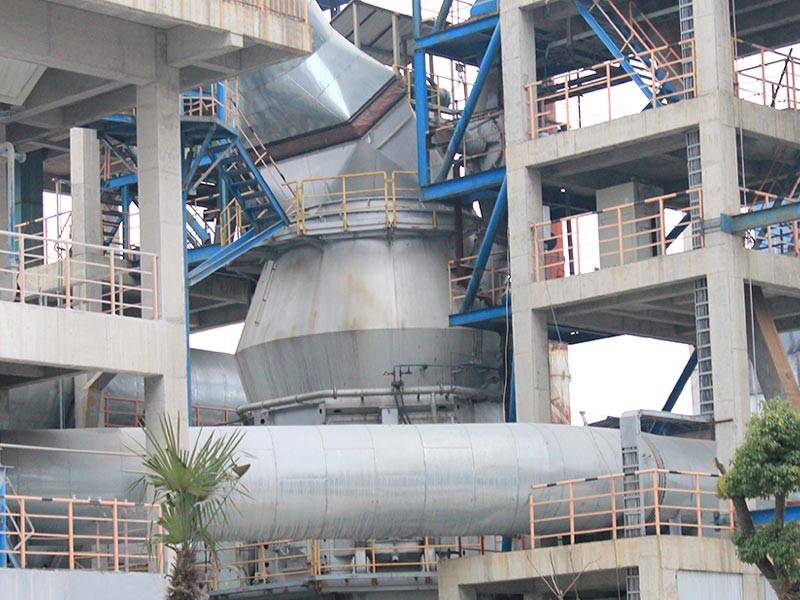

Vertical cement mill integrated into a grinding plant

Product Advantages

Buyer-Relevant Operating Advantages

Four design priorities support stable finish grinding and maintainable plant operation.

Integrated Grinding Circuit

AGICO's VRM cement mill combines grinding, drying, conveying, and classification inside one coordinated system.

Adjustable Grinding Pressure

The hydraulic loading system allows grinding pressure to be matched to material behavior and a stable bed.

Controlled Product Fineness

AGICO's adjustable separator returns coarse particles while qualified fines leave for collection.

Maintenance-Oriented Roller Access

Individual rollers can be moved for inspection, planned wear-part replacement, and routine maintenance.

Working Process

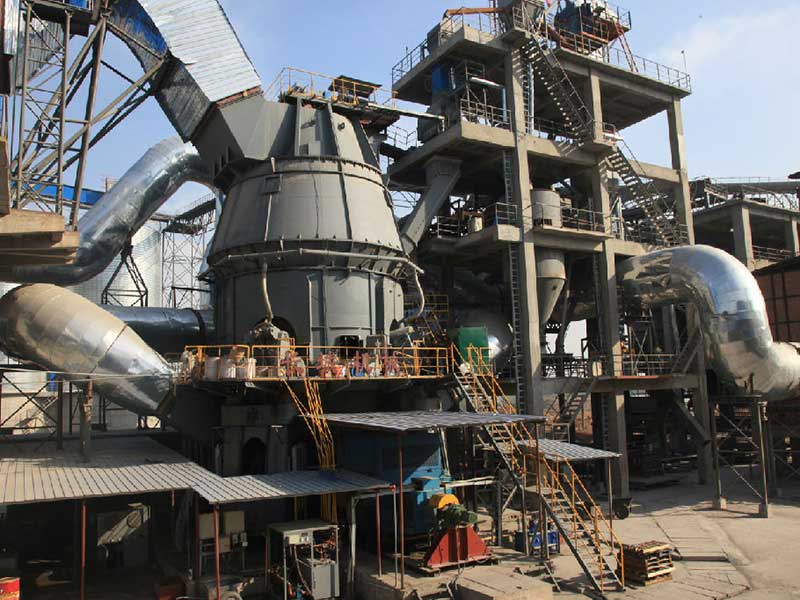

Vertical roller mill grinding and gas-handling system

From Clinker Feed to Classified Cement

The rotating table moves feed into the grinding track. Rollers apply pressure and shear, hot gas lifts and dries the material, and the separator returns coarse particles for another pass.

Feed enters the rotating table

Rollers grind the material bed

Hot gas lifts and dries particles

The separator classifies fines and returns coarse material

Core Systems

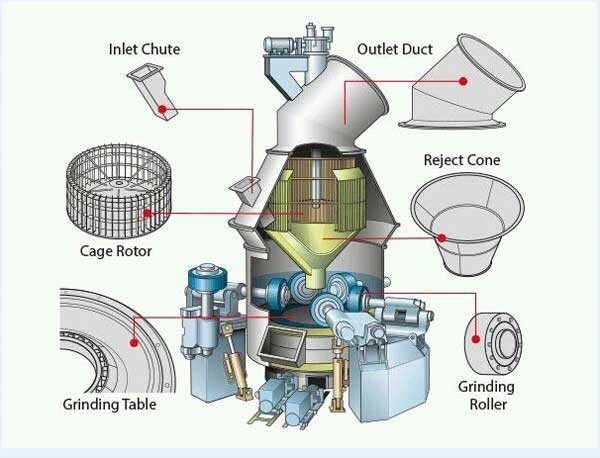

Main components of a cement vertical roller mill

Grinding and Hydraulic System

The table, rollers, rocker arms, hydraulic cylinders, and adjustable limit arrangement form the main comminution system. Hydraulic pressure is matched to material behavior, while wear-resistant surfaces are selected for operating duty.

Separation, Drive, and Maintenance

The motor, coupling, and gearbox drive the table. The separator controls coarse return and fine discharge, while dedicated lubrication and monitoring circuits support reliable inspection and maintenance.

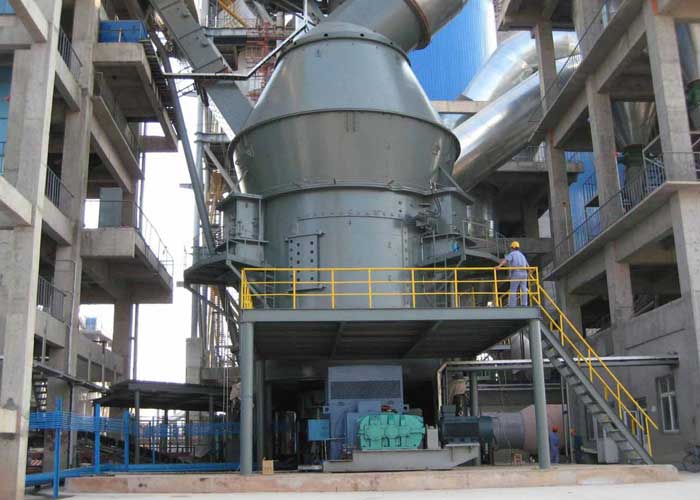

Cement vertical roller mill installed with maintenance access

Project Selection

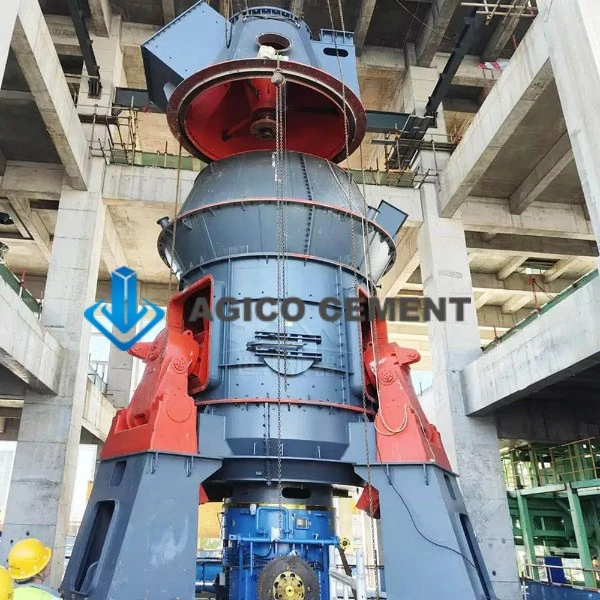

AGICO VRM cement mill prepared for project delivery

Plan a Project-Specific VRM Cement Mill

Send AGICO the cement recipe, feed moisture and size, grindability, target fineness, required output, heat-source data, elevation, power supply, and plant interface drawings for project-specific VRM sizing.

Request a VRM Cement Mill Proposal

Hot Tags: vrm cement mill, China vrm cement mill manufacturers, factory

Technical Parameters

Model	Table Diameter (mm)	Roller Diameter (mm)	Rollers	Installed Power (kW)	Standard Capacity (t/h)
AGI30.31	3,000	1,600	3	1,250	55-60
AGI32.31	3,200	1,700	3	1,600	65-80
AGI35.41	3,500	1,800	4	1,800	85-100
AGI40.41	4,000	1,900	4	2,500	115-125
AGI43.41	4,300	2,120	4	3,000	135-145
AGI46.41	4,600	2,240	4	3,350	150-160
AGI48.41	4,800	2,240	4	3,350	170-180
AGI50.41	5,000	2,360	4	3,900	190-200
AGI53.41	5,300	2,500	4	4,600	210-230
AGI56.61	5,600	2,500	6	5,300	235-250

The above data is provided for preliminary reference only. Actual plant capacity, mixer configuration, storage volume, power demand, discharge height, control functions, and overall dimensions must be confirmed according to your concrete recipes, site conditions, utilities, operating schedule, and specific project requirements.

FAQ

What materials can an AGICO VRM cement mill process?

AGICO configures the mill for cement finish grinding with clinker, gypsum, and approved mineral additions. The final blend and grindability influence output, power demand, wear, and separator settings.

How is cement fineness adjusted in the vertical mill?

AGICO coordinates separator speed with feed rate, grinding pressure, gas flow, and material-bed condition. The operating window is established for the required cement type and fineness.

What information is required for a technical proposal?

AGICO needs target capacity and fineness, cement recipe, feed moisture and size, grindability, elevation, power supply, heat-source data, and interfaces with filtration, conveying, storage, and control systems.

How are wear parts and rollers maintained?

AGICO provides access to grinding rollers and wear surfaces for inspection. Maintenance planning uses operating hours, vibration trends, lubricant condition, product performance, and measured wear.
