Limonite Rotary Kiln

Products Description

What is Limonite Rotary Kiln?

The limonite rotary kiln (also known as the iron oxide rotary kiln) is a rotating cylinder calcination device specifically developed for the calcination, dehydration, magnetization or reduction treatment of limonite. It can greatly boost the use rate of limonite and is widely utilized in the cement, metallurgy, chemical and environmental protection industries.

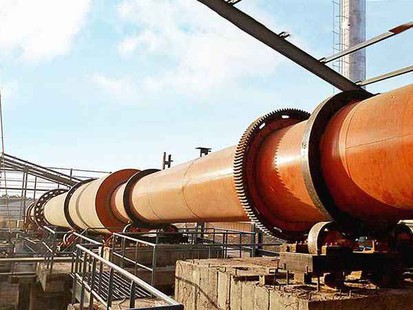

rotary kiln picture

How does the Limonite Rotary Kiln work?

The limonite rotary kiln is a large-scale equipment, consisting of the cylinder, transmission device, supporting and retaining wheel support device, kiln head and kiln tail seals, kiln head cover and combustion device, etc. Refractory bricks line the cylinder, which also has a heat exchanger. It rotates slowly and is positioned at a slight angle. Iron ore is added from the kiln's upper end (also known as the kiln tail) while it is operating. The lower end of the kiln is used to inject fuel, while the upper end is used to release flue gas. Iron ore inside the kiln continuously rolls from the feeding end to the discharging end on a periodic basis as the kiln cylinder spins. Through counter-current heat exchange with hot air flow, magnetite is heated while moving. Following chemical and physical transformations, it is released into the cooling device from the limonite rotary kiln as qualified products.

Technical Specification

Product Specification (m)	Inclination (%)	Yield (t/h)	Roast Speed (r/min)	The electric power (kW)	Weight (t)	Remarks
Φ2.5×40	3.5	180	0.44-2.44	55	149.61	Kiln With Vertical Cylinder Preheater
Φ2.5×50	3	200	0.62-1.86		187.37
Φ2.5×54	3.5	204	0.48-1.45		196.29
Φ2.7×42	3.5	320	0.1.-1.52		198.5
Φ2.8×44	3.5	400	0.437-2.18		201.58	Outside Decomposing Kiln
Φ3.0×45	3.5	500	0.5-2.47	75	201.94

Core features of Limonite Rotary Kiln

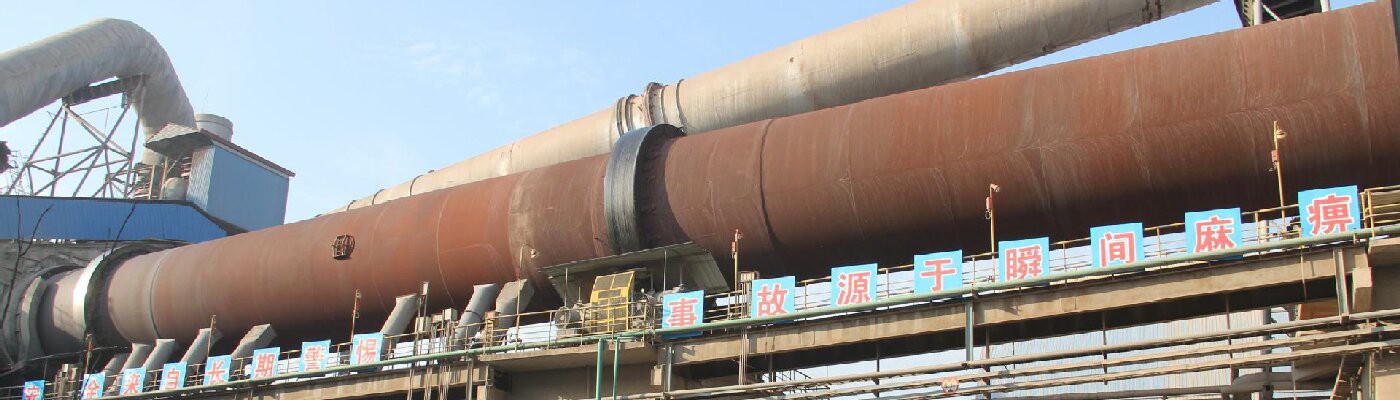

product-1400-400

▪ Simple structure and stable operation: The limonite rotary kiln has a high long-term operation rate, low maintenance costs, few sensitive parts, and excellent dependability thanks to its mature rotary kiln design.

▪ High calcination efficiency and strong adaptability: It is capable of handling various grades of limonite. Dehydration, oxidation, or reduction reactions can be accomplished to raise the iron content or magnetic susceptibility by varying the temperature (700–1000°C).

▪ Automatic control and convenient operation: In order to provide consistent calcination quality and minimize user intervention, our limonite rotary kiln uses a PLC intelligent control system to accurately adjust the kiln speed, temperature, and feed rate.

▪ Environmentally friendly and energy-efficient, adhering to industry standards: Reduce energy usage by optimizing the combustion system; It complies with environmental protection regulations and lowers waste gas emissions thanks to its dust removal and desulfurization equipment.

Limonite Rotary Kiln applications

Our limonite rotary kiln can convert low-quality limonite into high-quality magnetite or hematite, which will facilitate magnetic separation in the future.

AGICO limonite rotary kilns can produce high-quality raw materials for direct reduced iron (DRI) or blast furnaces.

In the cement manufacturing sector, limonite rotary kilns can be used to calcine cement clinker and increase cement's strength.

In addition to achieving resource utilization, our limonite rotary kiln can handle industrial waste residue.

Company profile

How To Cooperate With Us?

AGICO Cement International Engineering Co., Ltd. is a high-tech business that was founded in 1997 and focuses on cement equipment manufacturing, general contracting services for EPC, and engineering design. The company has 81.34 million yuan in registered capital, 66,000 square meters of space, and a 30,000 square meter production workshop. It offers every service required for a whole industrial chain, from design, fabrication, and installation to research and development.

With over 20 years of experience, AGICO Cement has made a name for itself as a trustworthy partner in the cement industry worldwide. In addition to cement production lines, rotary kilns, ball mills, dust removal equipment, and intelligent control systems, it provides comprehensive solutions such as EPC general contracting, technical consultancy, and equipment upgrading.

Our address

19F, Suite B, Global Trade Mansion, Wenfeng Avenue, Anyang, Henan, China.

Phone Number

+8615537260076

E-mail

info@cementequipments.com

Our partners

brand trusted choice

As one of the industry's top suppliers of industrial production equipment, AGICO has received great feedback from clients all over the world and built cordial working ties with several businesses. Please click to inquire about choosing an appropriate clinker kiln.

FAQ

Q: 1. How can I get an estimate for the limonite rotary kiln made by AGICO?

A: By getting in touch with our sales team via phone, email, or our official website, you can quickly get a price. We will talk about your particular project needs, such as capacity, material properties, and process requirements, in order to offer a tailored solution at a reasonable cost. Our professionals will make sure the plan satisfies your technical and financial requirements, regardless of whether you require a standard model or a completely customized solution.

Q: 2. Does AGICO provide specialized rotary kiln systems for limonite?

A: Yes, AGICO specializes in creating limonite rotary kilns that are specifically tailored to your production needs. To maximize the kiln's performance, our technical team takes into account variables including the composition of the ore, the intended output, energy efficiency, and site conditions. We customize every element, from material handling and pollution reduction to temperature control and sizing, to optimize efficiency and economy for your business.

Q: 3. How long does AGICO's limonite rotary kiln normally take to complete?

A: The characteristics of the kiln and the amount of orders determine the lead time. Large or highly specialized systems could take longer to engineer and fabricate, although standard models typically ship in two to four months. We will give you a thorough production plan as soon as your purchase is confirmed, and we will keep you informed at every stage to guarantee on-time delivery. For urgent jobs, expedited options can be available; for more information, speak with our staff.

Q: 4. For limonite rotary kilns, what quality criteria does AGICO adhere to?

A: The limonite rotary kilns produced by AGICO adhere to worldwide standards including CE, ASME, and GB (Chinese National Standards) and are produced under stringent ISO 9001 quality control systems. To guarantee longevity, thermal efficiency, and extended service life, we employ premium materials, precise welding, and cutting-edge refractory linings. Before being delivered, every kiln is put through a thorough testing process that includes trial runs, rotational balance checks, and material inspections.

Q: 5. What kind of post-purchase assistance is offered by AGICO for limonite rotary kilns?

A: We provide thorough after-sales services, such as maintenance manuals, commissioning assistance, operator training, and installation advice. If necessary, our technical staff can provide on-site support or remote troubleshooting. We also offer lifetime assistance for updates or process optimization, as well as authentic spare parts to reduce downtime. AGICO is dedicated to making sure your kiln runs as efficiently as possible for the duration of its life.

Hot Tags: limonite rotary kiln, China limonite rotary kiln manufacturers, factory, industrial continuous kiln, kiln main drive gearbox, rotary furnace, rotary kiln, short rotary furnace, small rotary furnace
